Super Pba-Pbb
Micropac Super horizontal wrapping machine suitable for wrapping solid products in general using heat sealing film. Can be connected to automated production lines.
Product range
Width: up to 180 mm
Length: up to 500 mm
Height: up to 120 mm
Accessoires
Automatic, standard or customised loaders.
- Automatische Beschicker Standard- oder Sonderausführung
- All models of printing machines
- Labelling machines
200 Super
Micropac Super 200 horizontal wrapping machine with reel holder from above, suitable for wrapping various types of products using heat sealing film. 3-axis control version also available.
Accessoires
- Automatic feeder systems
- Labelling and printing machines
- Printing centring
300 Super
Micropac Super 300 horizontal wrapping machine with reel holder from above, suitable for wrapping various types of products using heat sealing film. 3-axis control version also available.
Accessoires
- Automatic feeder systems
- Labelling and printing machines
- Printing centring
Bagmatic
Horizontal wrapping machine with extended sealing time and reel holder from below for polyethylene film. Exceptionally rapid format changes make it ideal for small production batches, where the frequency of interventions imposes maximum savings in time.
The machine immediately changes format as soon as the new pack data is entered, and no further action is required of the operator.
Suitable for both heavy and delicate products.
Product range
Length: from 75 mm
Width: from 40 to 180 mm
Length variation range: 25 mm
Speed
Up to 50 pack./min
Accessoires
- Automatic feeder system
- European hole punch
- Labelling and printing machines
- Gas supply system
- Print centering photocell.

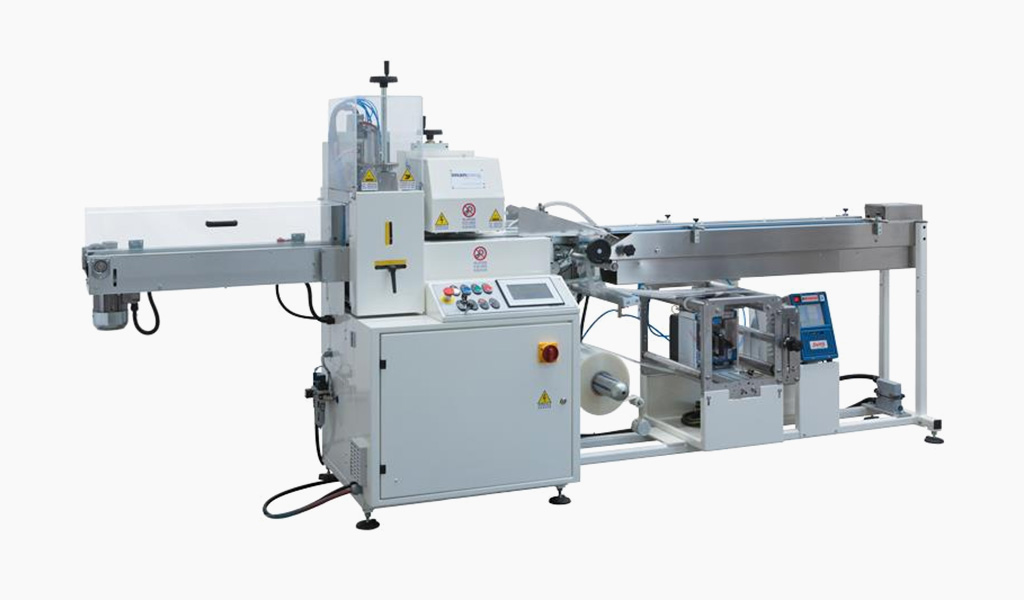

Intermittierend
Horizontal wrapping machine with reel holder from below suitable for wrapping solid products with polypropylene or polyethylene film
Product range
Length: up to 300 mm
Width: Min 40 mm - Max 180 mm
Height: up to 100 mm
Film width
400 mm (optional 500 mm)
Speed
Up to 20 pack./min
Accessoires
- Automatic feeder system
- European hole punch
- Labelling and printing machines
- Gas supply system
- Photocell for print registration
Mini
New smaller version of the Micropac Super, designed for the wrapping of solid products in polypropylene film at a speed of 40 packages a minute.
Easy to use as it can be controlled by the same operator that loads the product onto the feeder belt.
Product range
Length: from 125 to 250 mm
Width: from 10 to 150 mm
Height: up to 80 mm
Speed
up to 40 pack./min
Accessoires
- Photocell
- Output conveyor belt

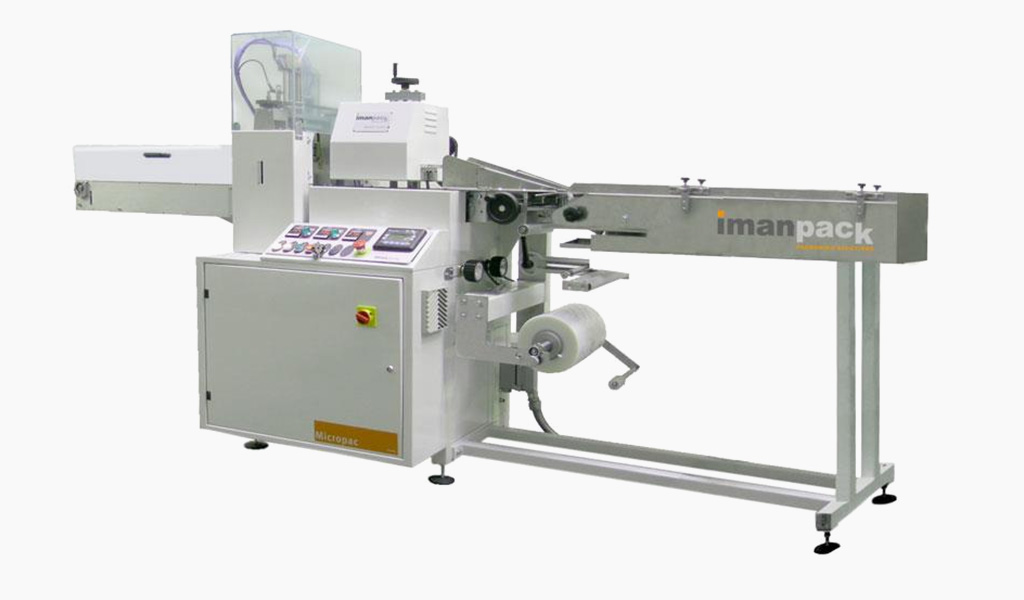

LTS
Micropac Lts horizontal wrapping machine suitable for wrapping solid products with polypropylene, polyethylene or laminated film.
Product range
Length: from 80 to 600 mm
Width: from 40 to 180 mm
Height: up to 100 mm
Speed
Up to 40 pack./min
Accessoires
- Automatic feeder system
- European hole punch
- Labelling and printing machines
- Gas supply system
- Print centering photocell.

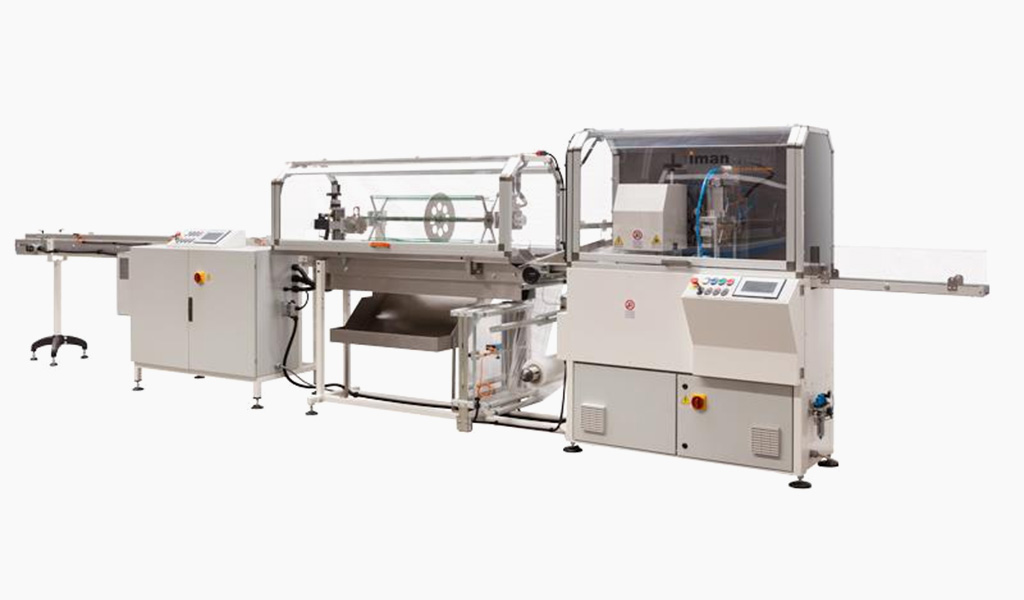

VRP3-Z
Micropac VRP3 horizontal wrapping machine for the packaging of solid products with heat sealing or polyethylene film, in special plastic cups and trays. Can be connected to automated production lines.
Product dimensions
Cups
Diameter: Min 40 mm / Max 115 mm
Stack length: Min 100 / Max 700
Trays
Diameter: Min 40 mm / Max 115 mm
Production
Up to 20 pack./min for packages max 300 mm in length.
Up to 18 pack./min for stacks of 100 cups max 70 mm in diameter.
It is possible to process double packs (two stacks of the same length) for products with a max diameter of 70 mm only.
Attention
A physical assessment of products with heights lower than 60 mm is required to verify the stacking stability during the counting phase and transfer to the wrapping machine.

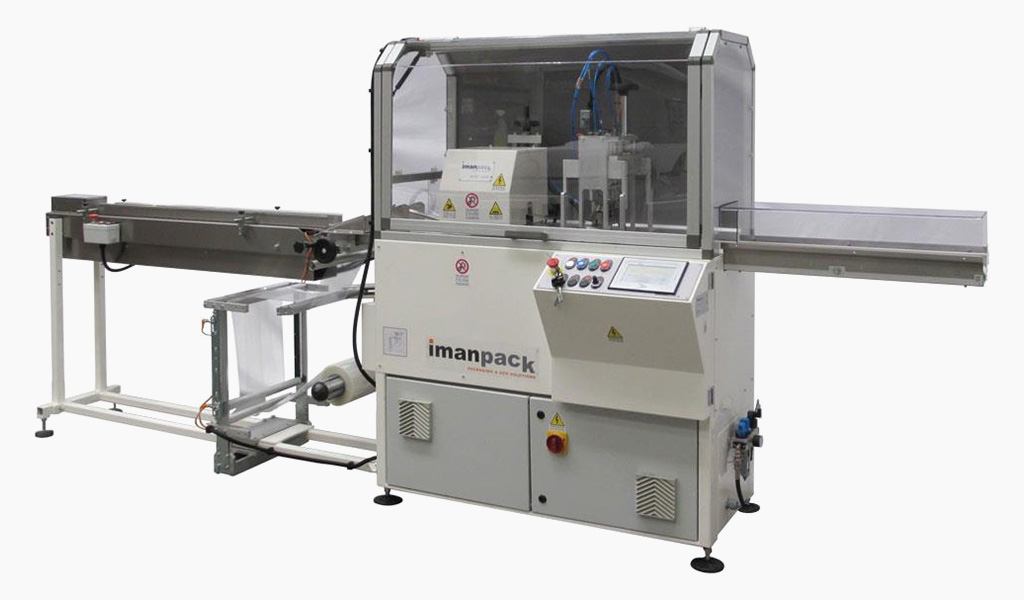

VRP3
The Micropac VRP3 machine flow-wraps solid products in polyethylene or heat sealing film.
It can be integrated in fully automated production lines.
Options
- Automatic feeder system
- European hole punch
- Labelling and printing machines
- Gas supply system
- Print centering photocell.

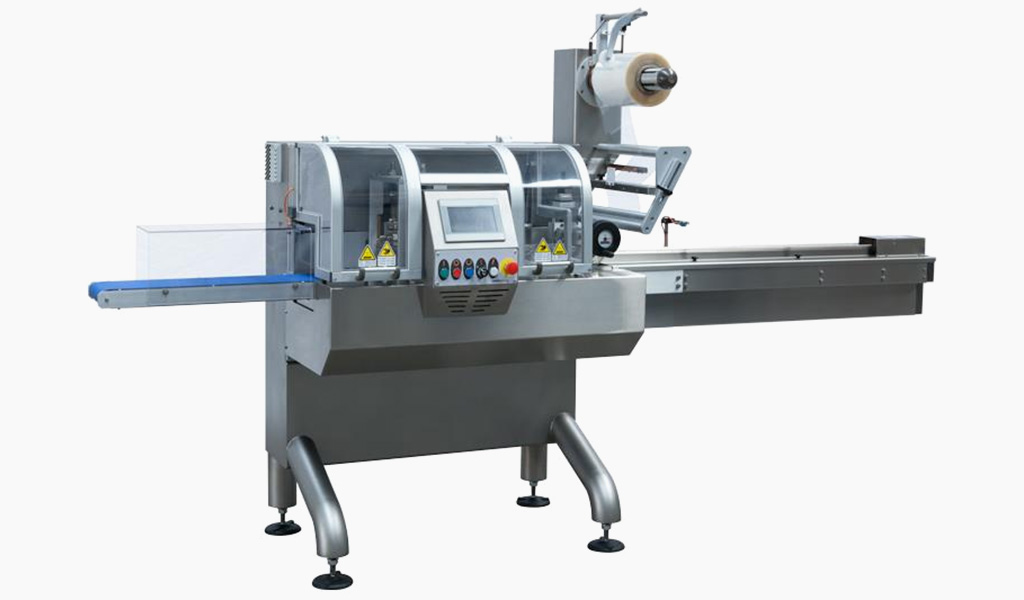

Pro
Rotary flow-wrapper suitable for wrapping solid products in general using heat sealing or polyethylene film. Control and command via PLC.
Can be connected to automated production lines.
Product range
Width: up to 180 mm
Length: from 20 mm
Height: up to 150 mm
Speed
Up to 250 pack./min
Accessoires
- Full AISI 304 inox version
- Automatic loaders
- Different conveyor belt lengths
- Motorized reel unwinder with inverter
- Printers and labellers
- Motorized output conveyor belt with inverter
- “No product - no bag” system.
